最新のNode-REDにtailノードがなくなったという話をしていましたが誤認でした(すみません)

先日書いたエントリですが、

uepon.hatenadiary.com

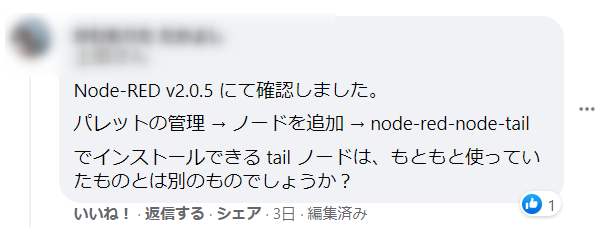

以下のようなコメントをいただきました。(Facebookでコメントいただいたので、お名前は隠しております)

f:id:ueponx:20210810150714p:plain

およ、新規のノードがあるとは!確認を全くしていなかったので全然気がついていませんでした。 せっかくコメントを頂いたのでちゃんと動作するかも含めて確認しようと思います。

flows.nodered.org

f:id:ueponx:20210810152750p:plain

拡張ノードとしてtailノードをインストールする

その他の拡張ノードと同様に最新版のNode-REDにnode-red-node-tailをインストールしていきます。

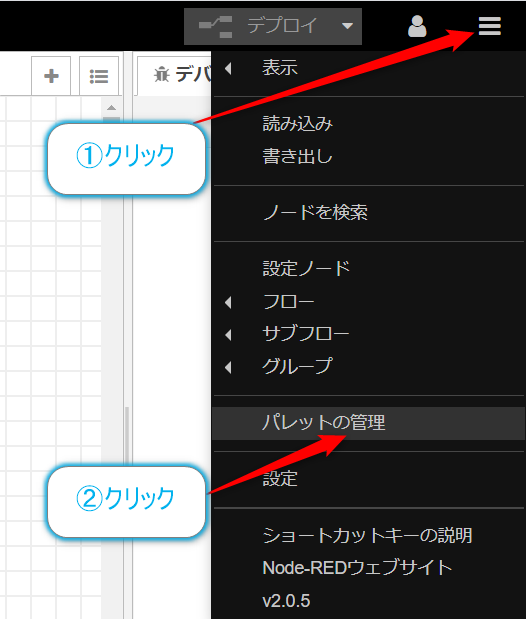

右上の【三】メニューをクリックして、プルダウンから【パレットの管理】をクリック

f:id:ueponx:20210810151329p:plain

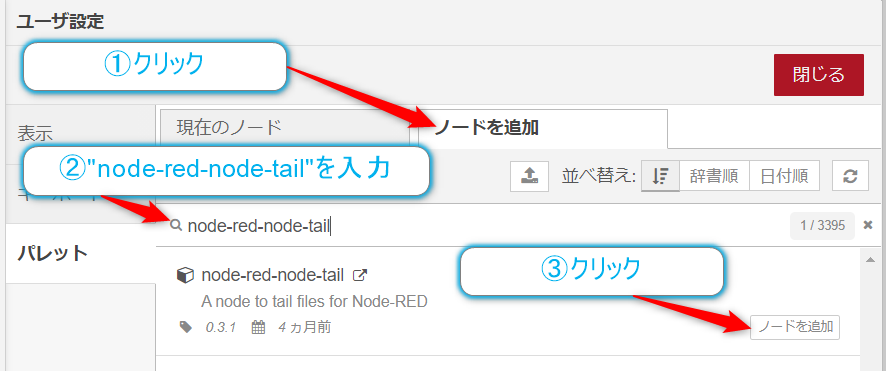

【ノードの追加】タブをクリックして、検索ボックスにnode-red-node-tailと入力していけば候補に表示されるので、【ノードの追加】ボタンをクリックすると

f:id:ueponx:20210810151639p:plain

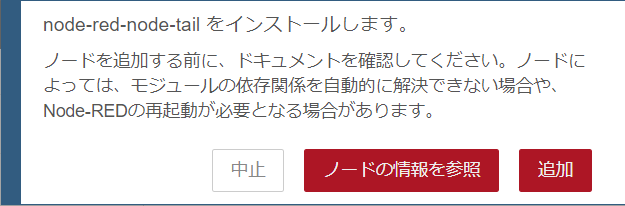

確認のダイアログが表示されるので【追加】ボタンをクリックするとインストールが行われます。

f:id:ueponx:20210810152103p:plain

インストール完了のダイアログが表示されます。

f:id:ueponx:20210810152428p:plain

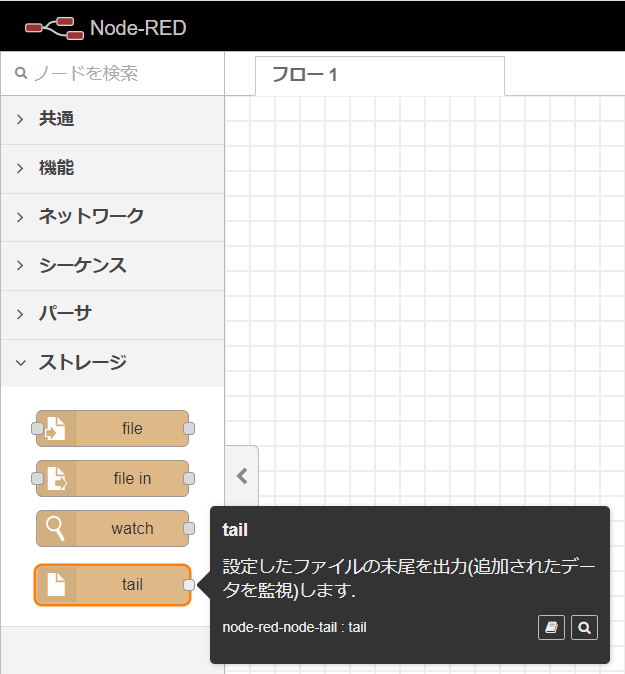

インストール後は旧バージョンと同様にStorageカテゴリにtailノードが表示されます。

動作を確認

プロパティの内容を確認しましたが、旧バージョンにもあったパラメータがそのままあります。

f:id:ueponx:20210810152542p:plain

旧バージョンで保存したフローを新バージョンのNode-REDに読み込んで実行してみましたが問題なく動作しました。

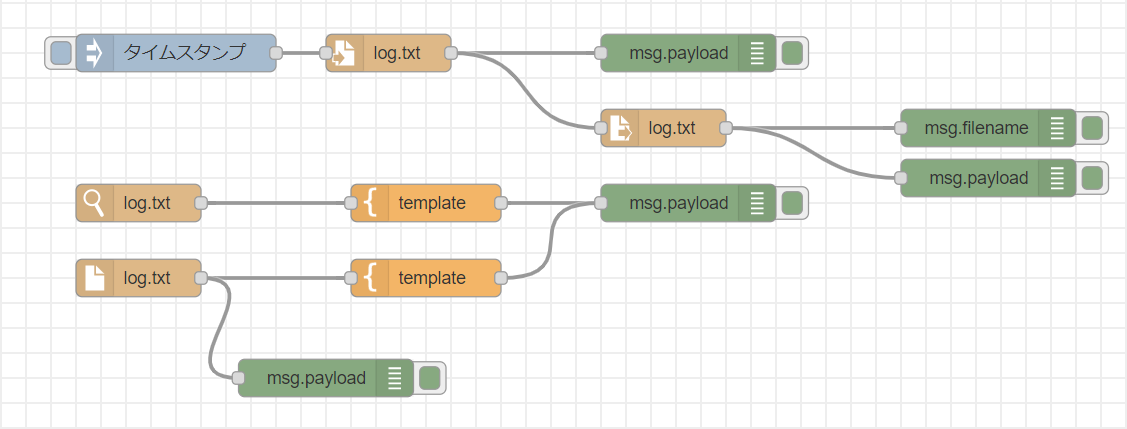

フロー

f:id:ueponx:20210810154653p:plain

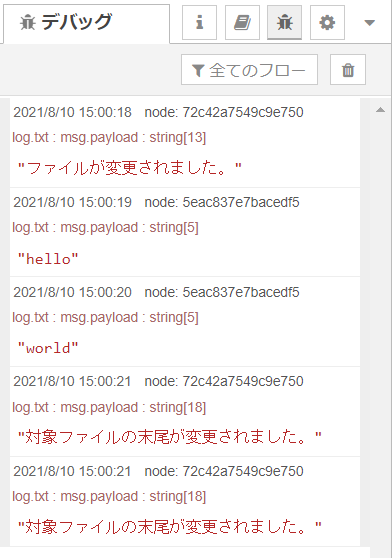

動作結果

f:id:ueponx:20210810154704p:plain

テストに使用したフローは末尾につけておきました。

そのまま動作してくれるのでわざわざfunctionノードで作成しなくても良かった…勉強になったので良かったですが。

以前は気にしていなかったのですが、今回の実験でノードの名前がtailノードとなっていますが、処理の内容的には、監視しているファイルに追記された行を順次出力してくれるという機能のほうが近いのかなと思いました。(差分のみの行出力をしてくれるの意)このほうが汎用的な処理がかけるかなとも思います。

おわりに

Node-REDはちゃんと機能を担保してれていると分かって、サポートがバッサリ切られるということはないんですね。 勉強になるとともに、助かるわ~という認識に至りました。

今後は標準ノードからなくなってしまっても、一旦は探したほうがいいですね。車輪の再開発にならないためにも。

ということで、tailノードは標準ノードという位置づけからは消えましたが、ちゃんと動きますよというお話でした。

テストに使用したフロー

[
    {
        "id": "73755b41.2fb194",
        "type": "tab",
        "label": "フロー 1",
        "disabled": false,
        "info": ""
    },
    {
        "id": "8efbb7be.484168",
        "type": "file",
        "z": "73755b41.2fb194",
        "name": "",
        "filename": "log.txt",
        "appendNewline": true,
        "createDir": true,
        "overwriteFile": "false",
        "encoding": "none",
        "x": 350,
        "y": 60,
        "wires": [
            [
                "bf4784e6.89b858",
                "af98e3bb.03ed2"
            ]
        ]
    },
    {
        "id": "ea2bd64e.fd74b8",
        "type": "inject",
        "z": "73755b41.2fb194",
        "name": "",
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 180,
        "y": 60,
        "wires": [
            [
                "8efbb7be.484168"
            ]
        ]
    },
    {
        "id": "bf4784e6.89b858",
        "type": "debug",
        "z": "73755b41.2fb194",
        "name": "",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "false",
        "x": 590,
        "y": 60,
        "wires": []
    },
    {
        "id": "4cc468c6.af0f38",
        "type": "tail",
        "z": "73755b41.2fb194",
        "name": "",
        "filetype": "text",
        "split": "[\\r]{0,1}\\n",
        "filename": "log.txt",
        "inputs": 0,
        "x": 150,
        "y": 240,
        "wires": [
            [
                "9ac418a8.b1ac88",
                "5eac837e7bacedf5"
            ]
        ]
    },
    {
        "id": "af98e3bb.03ed2",
        "type": "file in",
        "z": "73755b41.2fb194",
        "name": "",
        "filename": "log.txt",
        "format": "stream",
        "chunk": false,
        "sendError": false,
        "encoding": "none",
        "allProps": false,
        "x": 570,
        "y": 120,
        "wires": [
            [
                "1cd01b79.2b76e5",
                "ecdb5c39.c30f"
            ]
        ]
    },
    {
        "id": "1cd01b79.2b76e5",
        "type": "debug",
        "z": "73755b41.2fb194",
        "name": "",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "filename",
        "targetType": "msg",
        "statusVal": "",
        "statusType": "auto",
        "x": 830,
        "y": 120,
        "wires": []
    },
    {
        "id": "ecdb5c39.c30f",
        "type": "debug",
        "z": "73755b41.2fb194",
        "name": "",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "payload",
        "targetType": "msg",
        "statusVal": "",
        "statusType": "auto",
        "x": 830,
        "y": 160,
        "wires": []
    },
    {
        "id": "1b98bb88.57ac54",
        "type": "watch",
        "z": "73755b41.2fb194",
        "name": "",
        "files": "log.txt",
        "recursive": "",
        "x": 150,
        "y": 180,
        "wires": [
            [
                "65ac1c17.f7afe4"
            ]
        ]
    },
    {
        "id": "65ac1c17.f7afe4",
        "type": "template",
        "z": "73755b41.2fb194",
        "name": "",
        "field": "payload",
        "fieldType": "msg",
        "format": "handlebars",
        "syntax": "mustache",
        "template": "ファイルが変更されました。",
        "output": "str",
        "x": 380,
        "y": 180,
        "wires": [
            [
                "72c42a7549c9e750"
            ]
        ]
    },
    {
        "id": "9ac418a8.b1ac88",
        "type": "template",
        "z": "73755b41.2fb194",
        "name": "",
        "field": "payload",
        "fieldType": "msg",
        "format": "handlebars",
        "syntax": "mustache",
        "template": "対象ファイルの末尾が変更されました。",
        "output": "str",
        "x": 380,
        "y": 240,
        "wires": [
            [
                "72c42a7549c9e750"
            ]
        ]
    },
    {
        "id": "72c42a7549c9e750",
        "type": "debug",
        "z": "73755b41.2fb194",
        "name": "",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "false",
        "statusVal": "",
        "statusType": "auto",
        "x": 590,
        "y": 180,
        "wires": []
    },
    {
        "id": "5eac837e7bacedf5",
        "type": "debug",
        "z": "73755b41.2fb194",
        "name": "",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "false",
        "statusVal": "",
        "statusType": "auto",
        "x": 300,
        "y": 320,
        "wires": []
    }
]
/* -----codeの行番号----- */
